圆压圆模切胶垫说明



优力胶（聚氨酯PU弹性体）简介

优力胶是一种介于塑料和橡胶之间的新型材料，具有高强度、低压缩变形、塑料的刚性和橡胶的弹性。它广泛用于替代橡胶，适用于模具弹簧、减震垫等场景。优力胶是聚氨酯棒/板的另一种称呼。



产品特点

1. 高精度圆周度公差：胶垫具有极高的圆周度精度，确保模切过程中尺寸的稳定性。

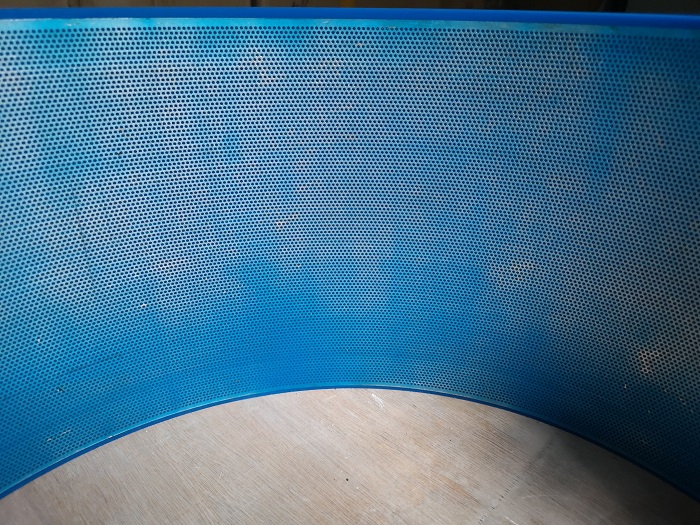

2. 内侧钢网结构：内置牢固的钢网材料，增强胶垫的耐用性和操作灵活性。

3. 坚固表面质量：保证软模切过程中模切和压痕的高质量。

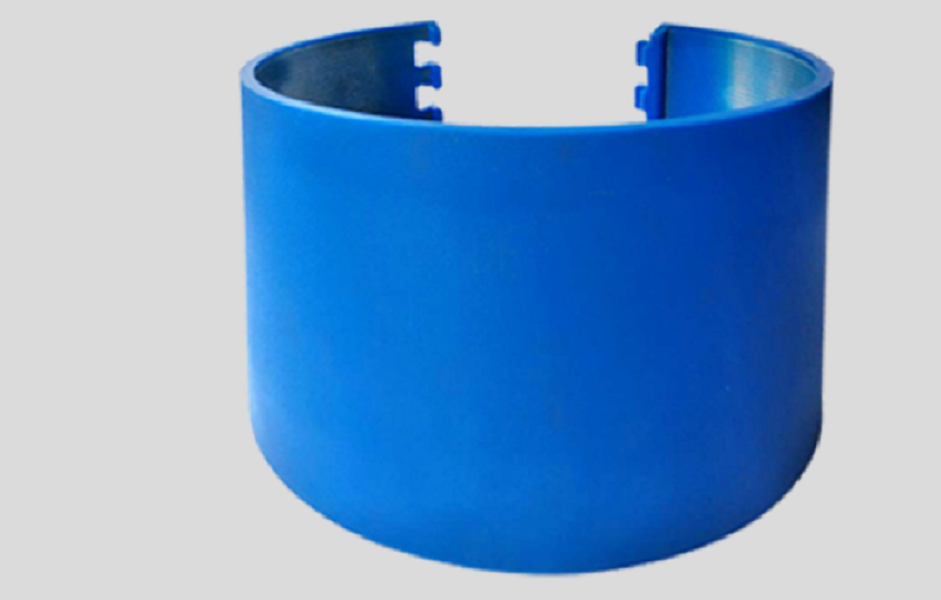

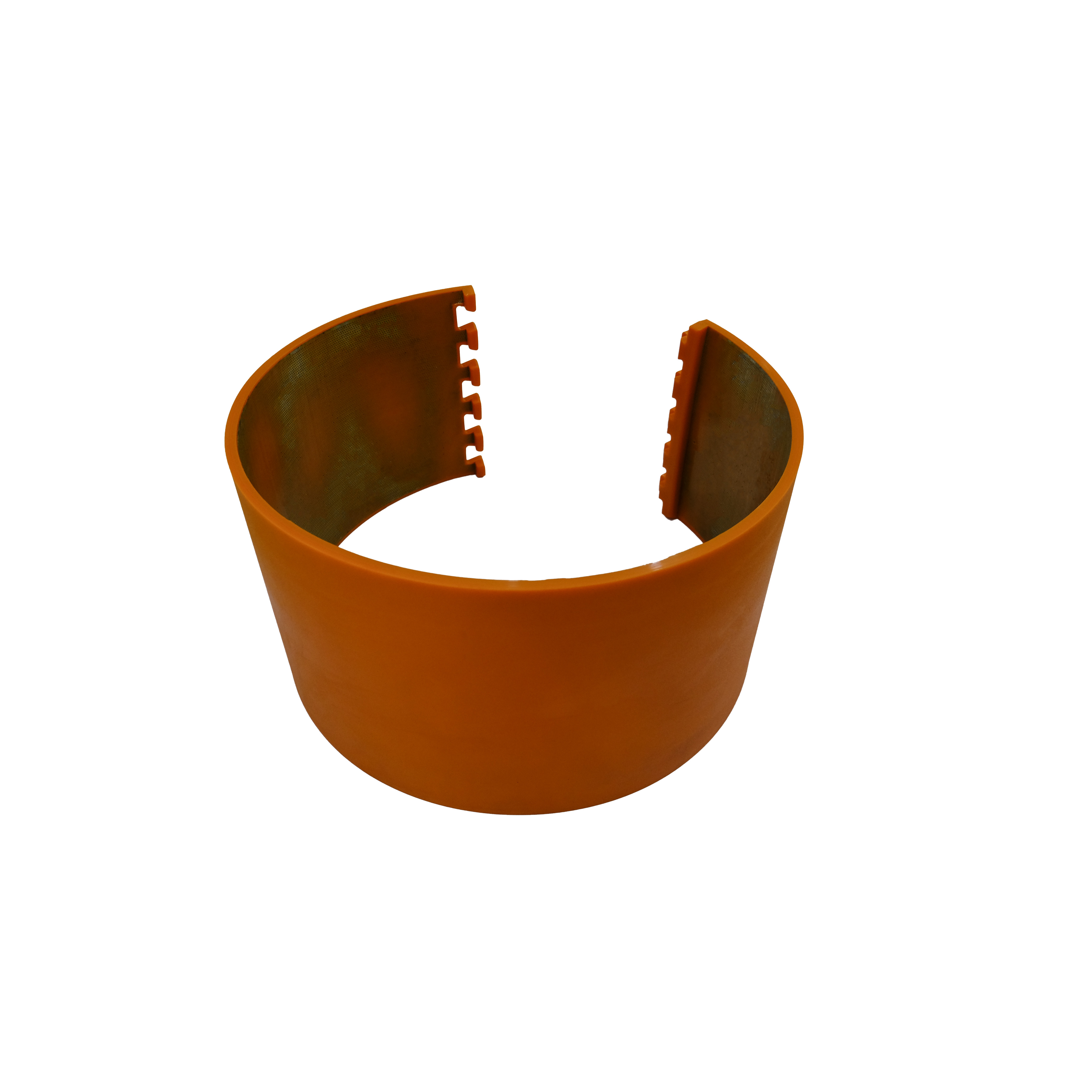

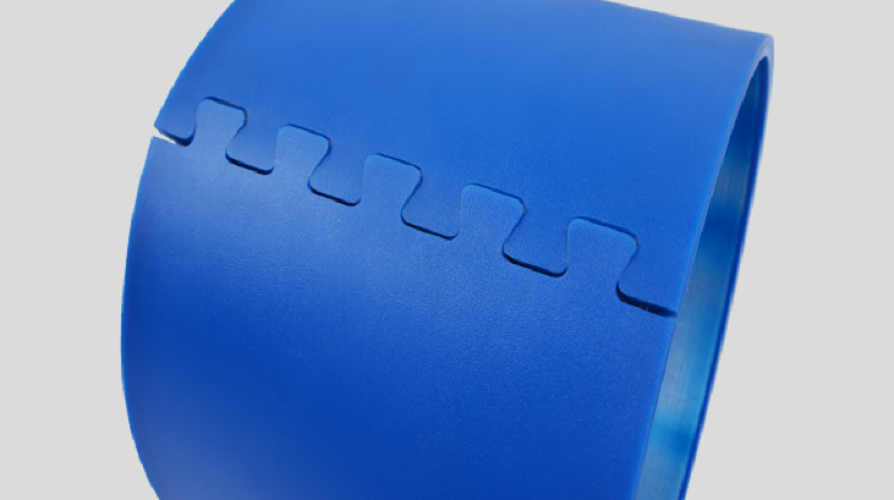

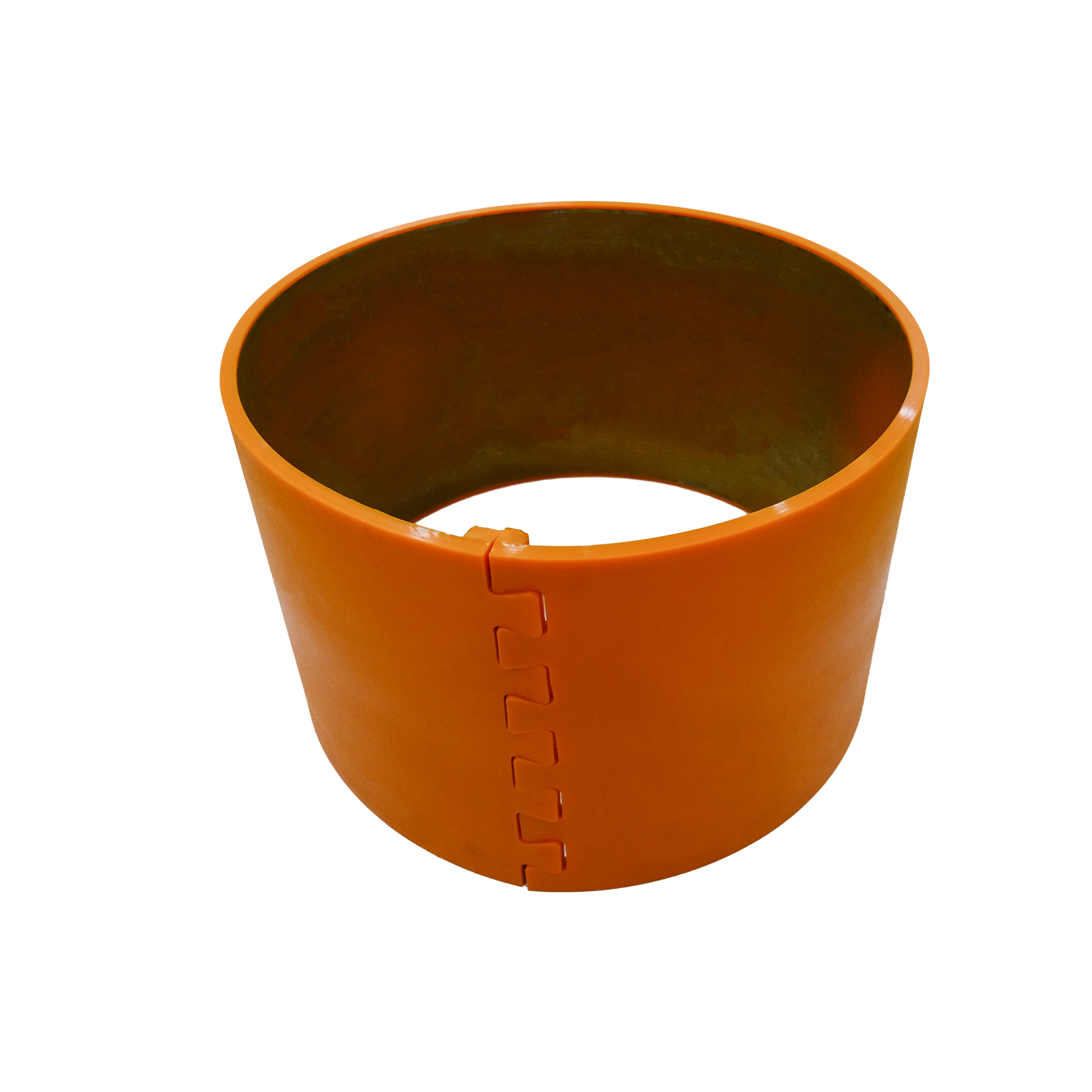

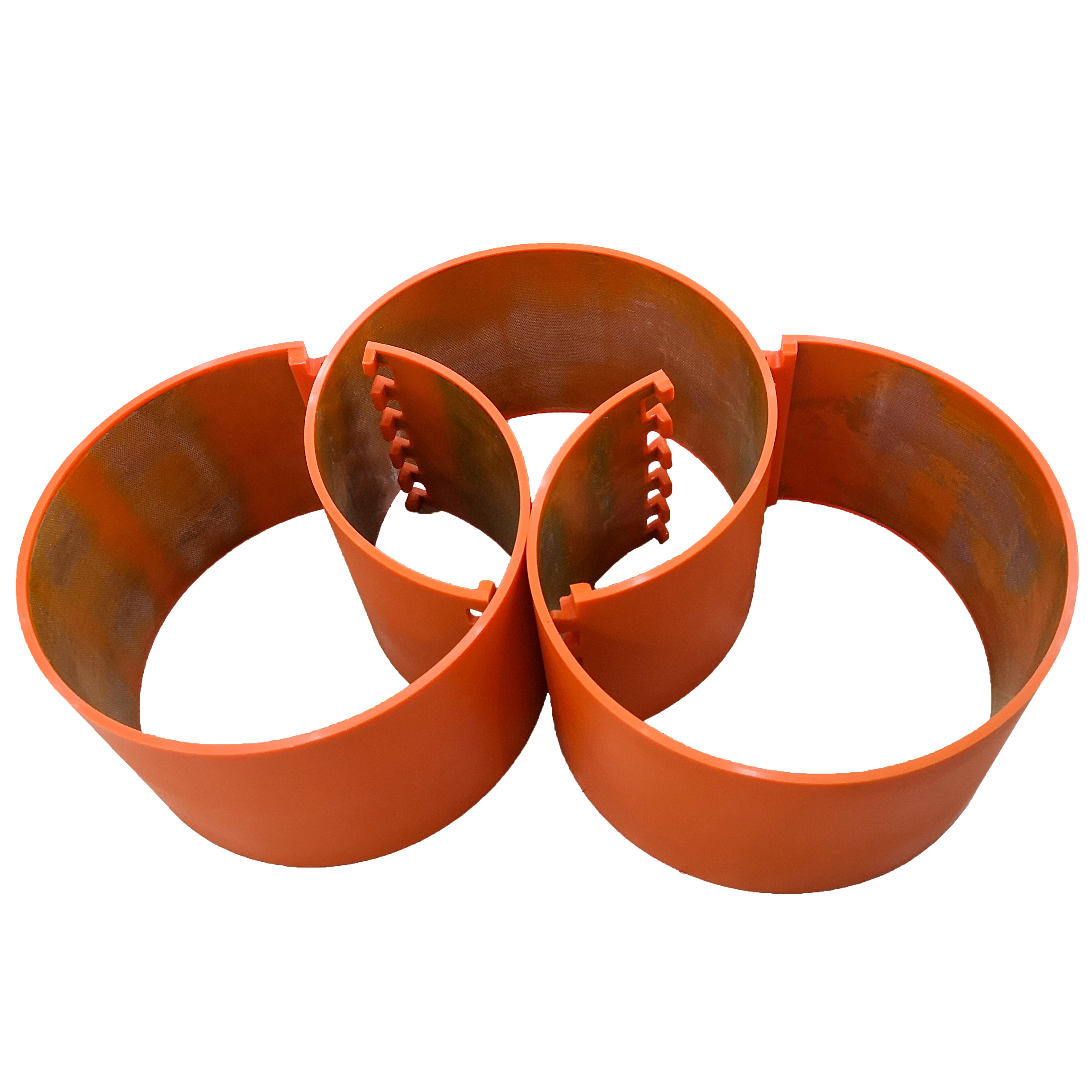

4. 锁扣设计：连接处采用锁扣设计，确保模切过程中连接点的强度。



圆压圆模切胶垫的特点



1. 高质量材料

   - 采用美国优质聚氨酯制造，能够承受模切时的高压和冲击，耐磨耐用。

   - 在高速模切过程中不易产生划痕，操作人员只需最小压力即可获得清洁的模切产品，延长模切机和胶垫的使用寿命。



2. 快速更换

   - 更换胶垫仅需20分钟，采用左右纽扣式缝合，无需螺钉，大幅减少停机时间。



3. 灵活操作

   - 内壁钢网设计使胶垫更加灵活，易于操作。



4. 多样化规格

   - 现有数据库涵盖多种规格，能够快速满足客户需求。







胶垫安装、拆卸与换位



所需工具

- 橡胶锤

- 一字螺丝刀

- 锉刀



安装步骤

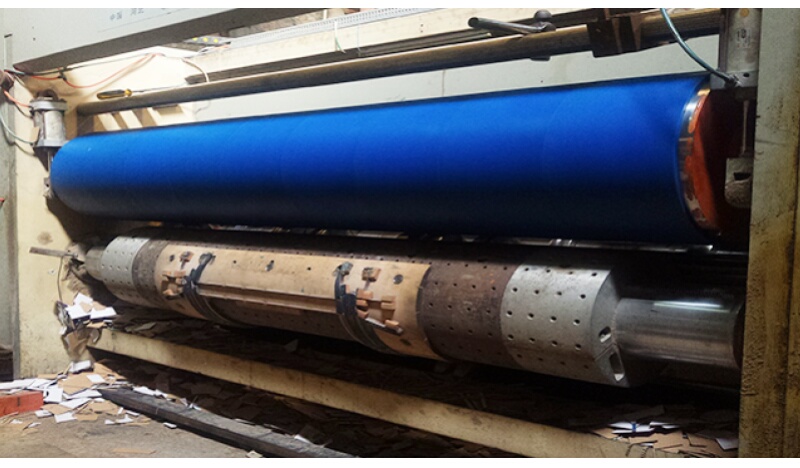

1. 清洁凹槽：安装前彻底清理滚筒凹槽，避免杂物损伤胶垫。

2. 开始安装：从滚筒中心开始安装第一片胶垫。

3. 固定末端：将胶垫末端卡入凹槽，用橡胶锤轻轻敲入。

4. 绕滚筒一周：抓住胶垫另一端绕滚筒一周，对齐两端后用橡胶锤敲入。

5. 安装其他胶垫：重复上述步骤安装剩余胶垫。



拆卸步骤

1. 撬出胶垫：在滚筒凹槽处用一字螺丝刀插入胶垫锁扣，撬出胶垫。

2. 依次拆卸：重复操作拆卸其他胶垫。



换位建议

1.定期换位：建议每模切10万次更换一次胶垫位置，以延长使用寿命和保证模切质量。

2. 无方向限制：可根据胶垫磨损情况灵活调整位置，换位越频繁，使用寿命越长。





其他注意事项



1. 安装前检查

   - 确保滚筒表面和凹槽干净，避免杂物影响胶垫性能。



2. 安装方向

   - 安装时需明确滚筒的旋转方向，避免装反。



3. 初次使用调整

   - 更换新胶垫后，初次使用时需将模切滚筒与胶垫滚筒的距离调至初始位置，用废纸板试模切，逐步增加压力至刚好切断纸张即可。压力越小，胶垫寿命越长。



4. 同步器调整

   - 更换新胶垫后，需检查机器的同步器或调速器是否正常，避免模切尺寸偏差。修磨胶垫后也需注意此问题。



5. 存放环境

   - 胶垫存放或使用时需避免阳光直射，以免影响使用寿命。
